SMLOGIN Proxy Integration Tutorial

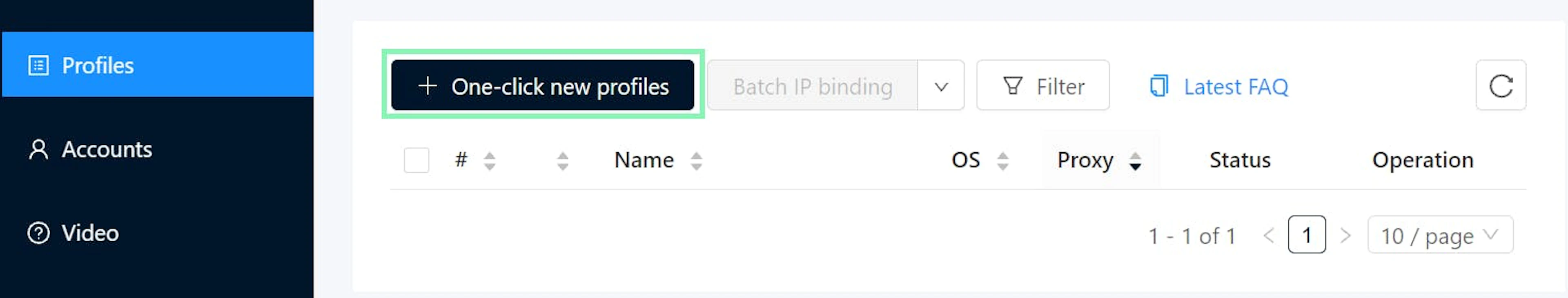

3. Then, as you fill in the information necessary for your use case, save the profile and a profile should pop us as follows:

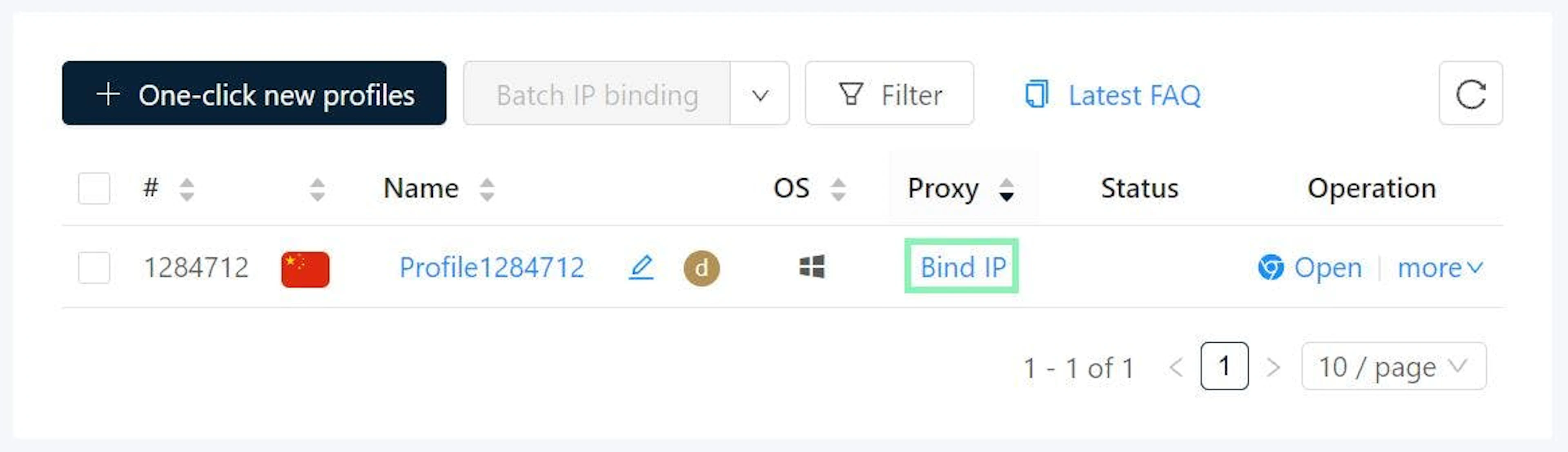

4. To add a proxy, click on Bind IP.

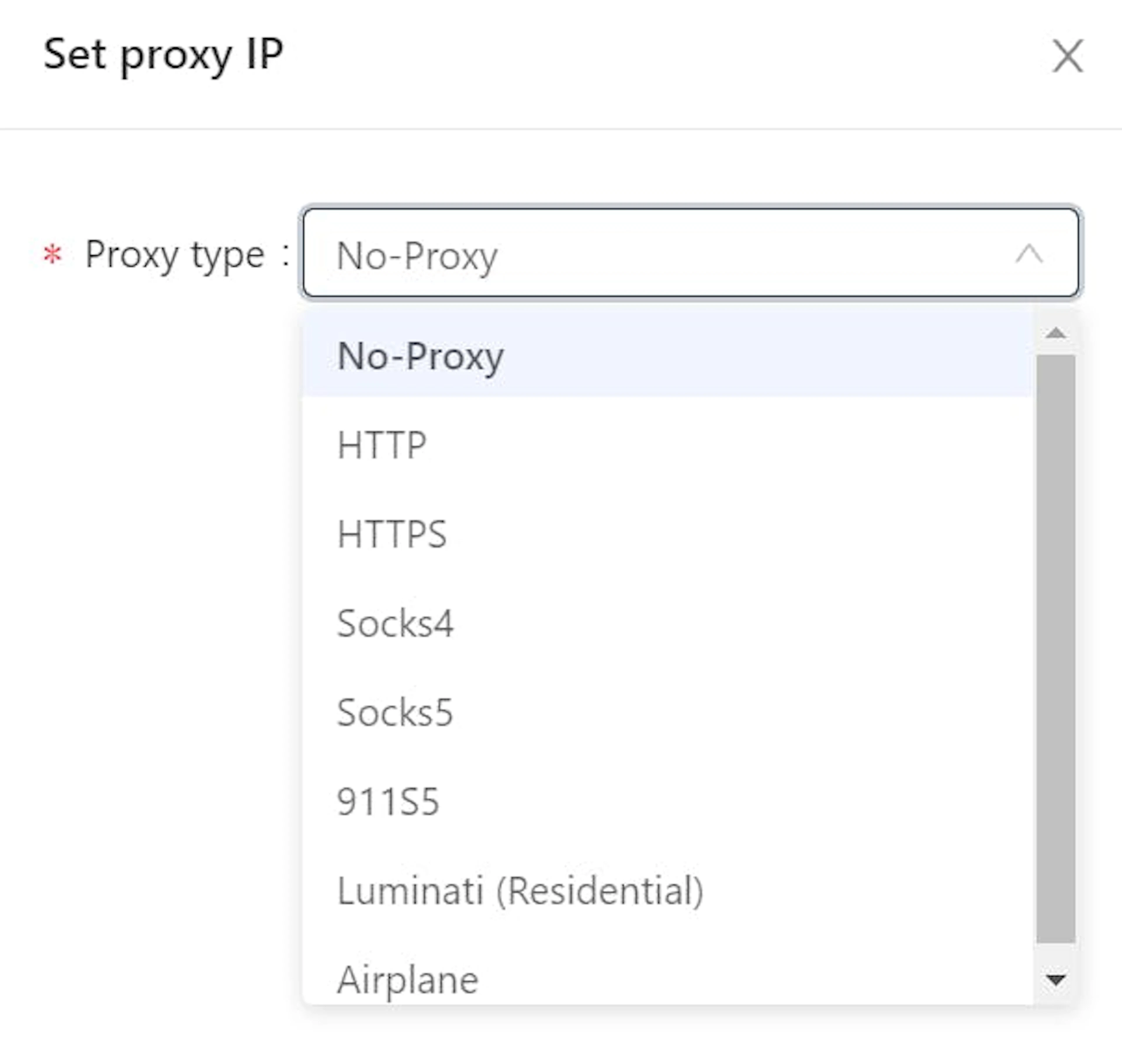

5. A new pop up will appear asking you to add specific proxy information.

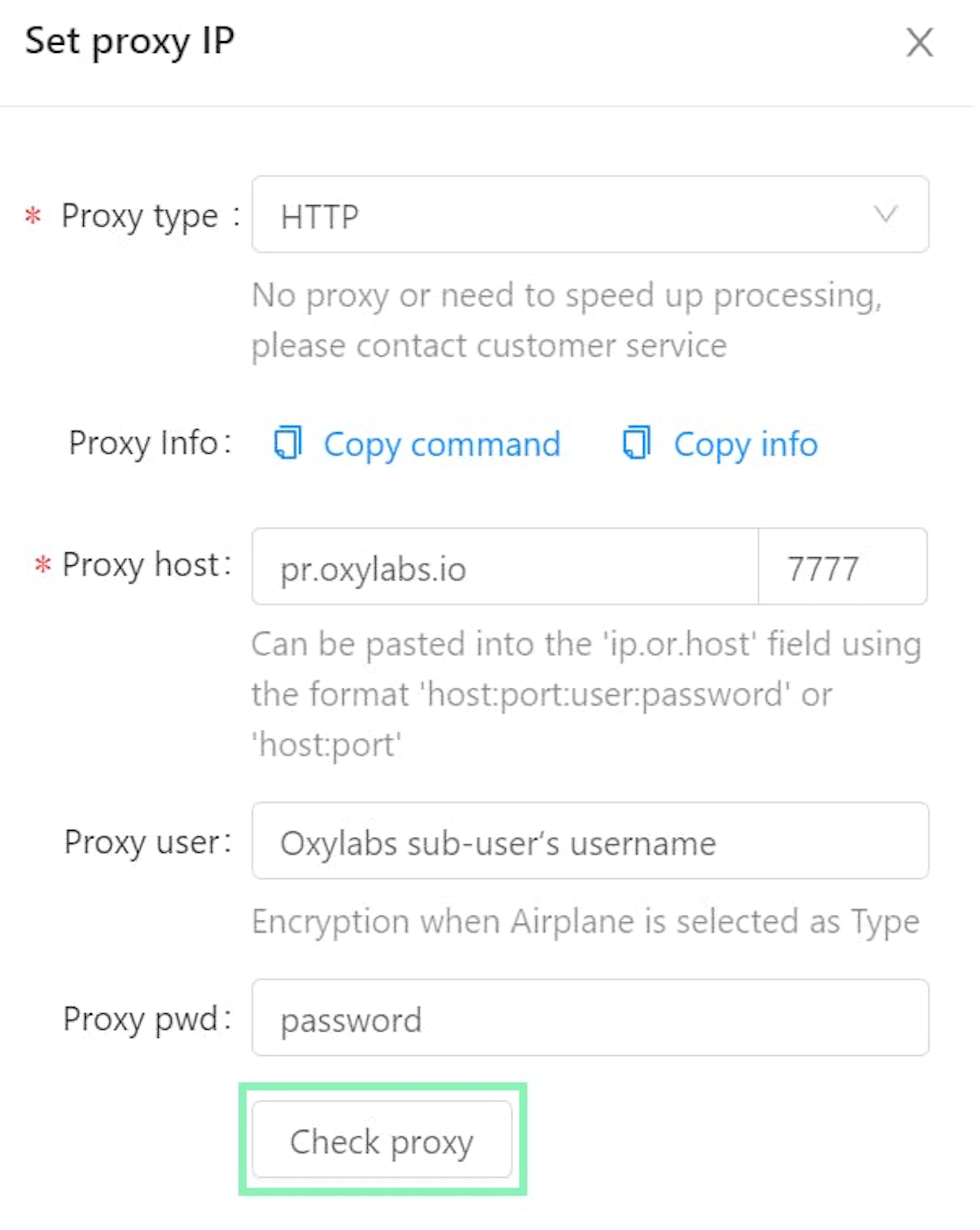

6. If you want to use proxies, enter your Oxylabs proxy user credentials and other details, as shown in the example below.

Residential Proxies

Proxy type: HTTP, HTTPS, or SOCKS5

IP/Host: pr.oxylabs.io

Port: 7777

You can also use country-specific entries. For instance, if you enter us-pr.oxylabs.io under Host and 10000 under Port, you’ll acquire a US exit node. Check our documentation for the full list of country-specific entry nodes or if you need a sticky session.

Enterprise Dedicated Datacenter Proxies

Follow these instructions to set up Dedicated Datacenter Proxies purchased through the sales team.

Proxy type: HTTP or SOCKS5

IP/Host: a specific IP address (e.g., 1.2.3.4)

Port: 60000

Please see our documentation for more information – you'll have to choose an IP address from the acquired list.

Self-Service Dedicated Datacenter Proxies

Follow these instructions to set up Dedicated Datacenter Proxies purchased through the Oxylabs’ dashboard.

Proxy type: HTTP, HTTPS, or SOCKS5

IP/Host: ddc.oxylabs.io

Port: 8001

Note that the port number directly corresponds to the IP address in your proxy list in sequential order. For example, port 8001 will select the first proxy IP from your list. For more information, visit our documentation.

Shared Datacenter Proxies

Proxy type: HTTP

IP/Host: dc.pr.oxylabs.io

Port: 10000

You can also use country-specific entries. For example, entering dc.us-pr.oxylabs.io under Host and 30000 under Port will acquire a US exit node. Please refer to our documentation for a complete list of country-specific entry nodes.

7. Enter your Oxylabs proxy user’s credentials under Proxy account and Proxy pwd. Use the same username and password you entered to create a new proxy user in the Oxylabs dashboard.

The final URL should look like this (just with your own proxy user's credentials). You can check if your proxy has been set up correctly by clicking on the Check proxy button.

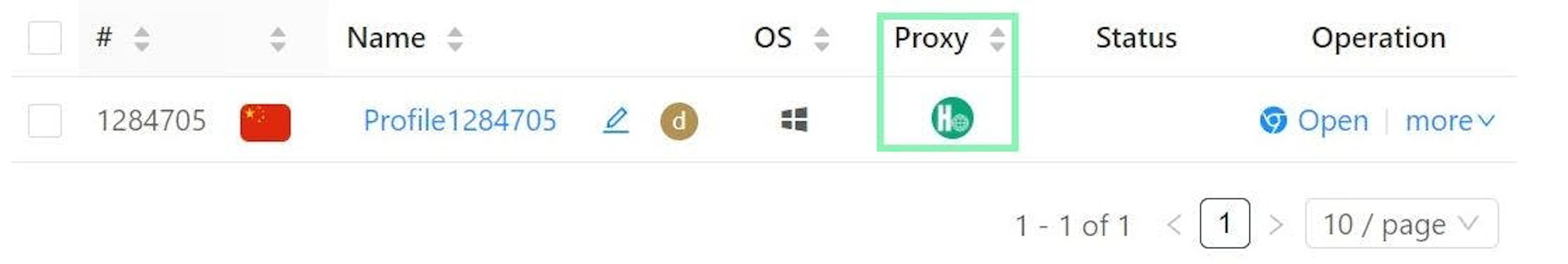

8. Now click Save proxy, and your profile will be updated. A logo will appear above the Proxy section, indicating which proxy type you've chosen (SOCKS5, HTTP, etc.).
